FITTING & FLANGES
STAINLESS
| TYPE | SPECIFICATION | SIZE | ||
|---|---|---|---|---|
| FITTINGS | Seamless | Butt weld | ANSI/ASME B16.9 ASTM A403 All Grades | ½” – 12” |
| Welded | Butt weld | ANSI/ASME B16.9 ASTM A403 All Grades | ½” – 40” | |
| Forged | Threaded, Socket Weld | ANSI/ B16.11 ASTM A182 All Grades | 1/8” - 4” | |
| ‘O’ lets | MSS SP95/97 - ASTM A182 All Grades | 1/8”- 24” | ||

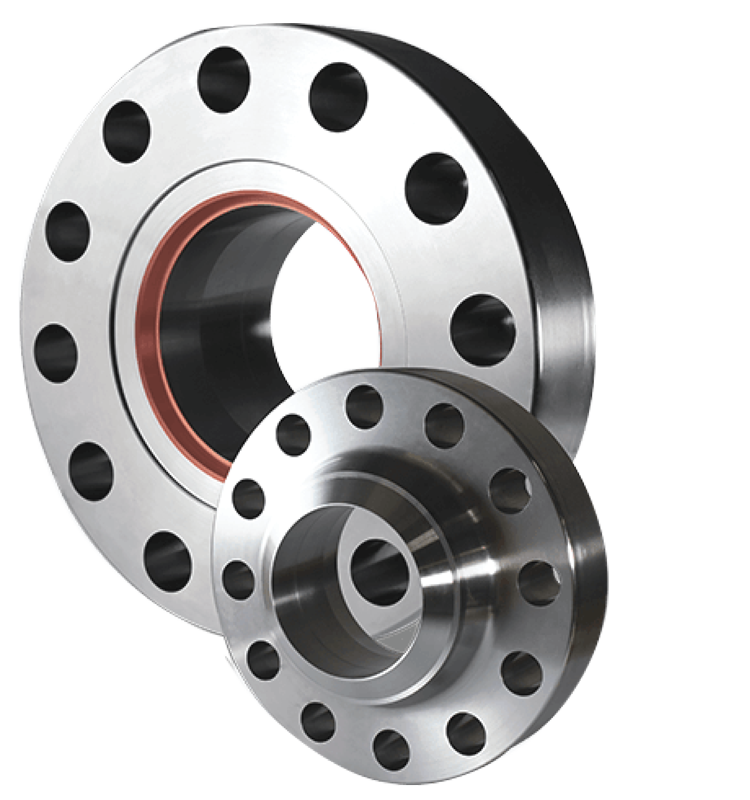

| FLANGES | Plate | ANSI/ASME B16.5 – All Grades | ½”- 24” | |
| ANSI/ASME B16.47 – All Grades | 26” – 60” | |||
|
BS 4504 - All Grades BS10 – All Grades |
3/8” – 48” | |||
| EN 1092 – 1 - All Grade | 10 – 3600mm | |||
| Forged |
BS 4504 - All Grades BS10 – All Grades |
3/8” – 48” | ||
| 1092 – 1 - All Grades | 10 – 3600mm | |||
| ANSI/ASME B16.5 – ASTM A182 All Grades | ½” – 24” | |||
| ANSI/ASME B16.47– ASTM A182 All Grade | 26” – 60” | |||
CARBON & ALLOY
| TYPE | SPECIFICATION | SIZE | ||
|---|---|---|---|---|
| FITTINGS | Seamless | Butt weld |
ASTM A234 WPB ASTM A234 WPL6 ASTM A234 P Grades High Yield Grades |
¼” – 24” |
| Welded | Butt weld |
ASTM A234 WPB ASTM A234 WPL6 ASTM A234 P Grades High Yield Grades |
26” – 60” | |
| Forged | Threaded, SW & ‘O’ lets |
ASTM A105N ASTM A350 LF2 ASTM A182 Alloy Grades ASTM A182 High Yield Grades |
1/8” - 4” | |
| FLANGES | Plate | ANSI/ASME B16.5 | ½”- 24” | |
| ANSI/ASME B16.47 | 26” – 60” | |||
| BS4504/BS10 | 3/8” – 48” | |||
| EN 1092-1 | 10 – 3600mm | |||
| Forged | ANSI/ASME B16.5 | ASTM A105N | 3/8” – 48” | |
| ASTM A350 LF2 | ½” – 24” | |||
| ASTM A182 Alloy Grades | ||||
| ASTM A182 High yield Grades | ||||
| ANSI/ASME B16.47 | ASTM A105N | 26” – 60” | ||
| ASTM A350 LF2 | ||||
| ASTM A182 Alloy Grades | ||||
| ASTM A182 High yield Grades | ||||
